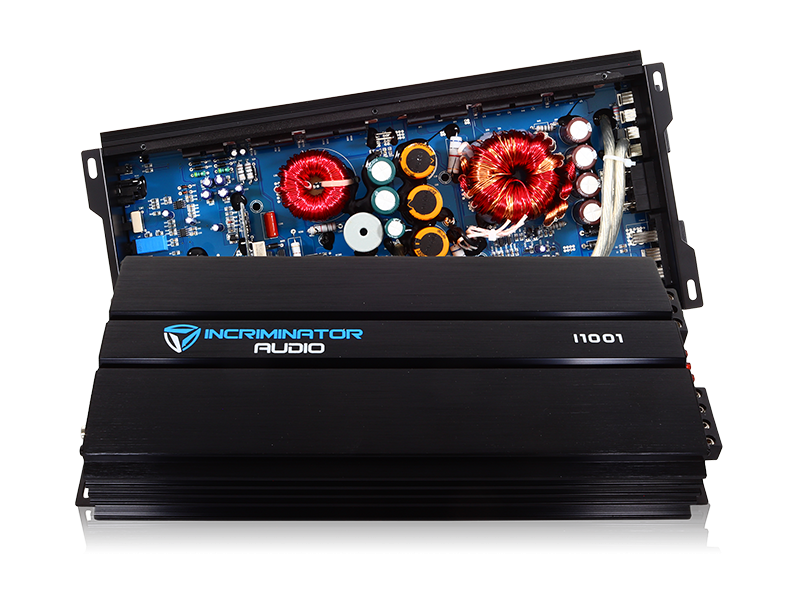

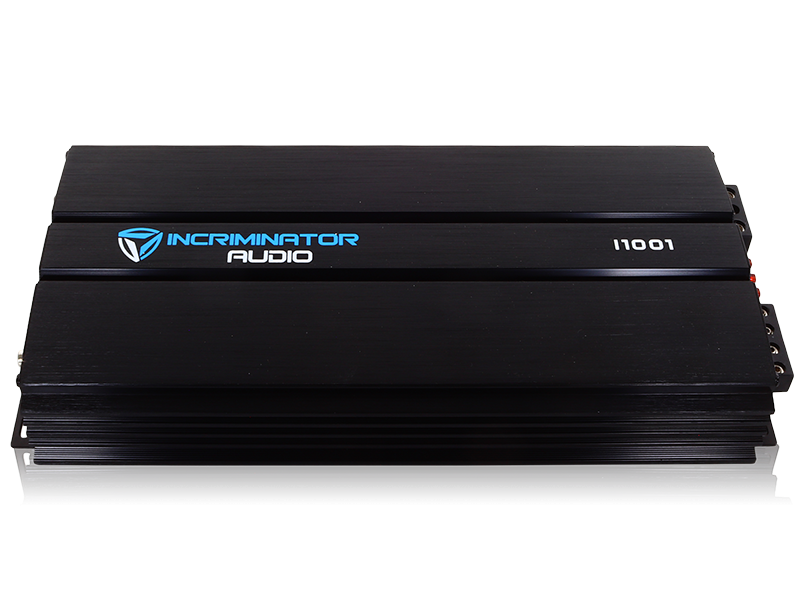

We are quite excited to present to you the all new i1001. It is impossible to call the I Series amplifiers entry level, as they are superior in quality and design compared to other entry level amplifiers. Component selection and build quality takes our I Series amplifiers a grade up from entry level. We took a look at our beloved i501 monoblock and thought hum, let's double the performance. The i1001 is the absolute definition of bang-for-your-buck when it comes to monoblock amplifiers.

A perfect mate to pair with our I Series subwoofers or a single Lethal Injection, the i1001 efficiently cranks out 1000 watts of power @ 1ohm mono in a compressed space. The i1001 brings you all the features you need for a great daily driver amplifier. Protect your subs with the excellent protection circuitry and an adjustable subsonic filter, while keeping the output at your fingertips with the remote bass knob. We even brought along the strapping ability, if you were ever in need of running more than one i1001 in the same vehicle. Have two Lethal Injections? Why not two i1001’s for that sleek looking install?

Save space & save money, while not sacrificing quality. When your bass needs more cowbell, call upon the i1001 to have more than enough reliable power for clean bass for a long time to come.

Features

Specifications

Features

Specifications

The 2016 I Series amplifiers is Incriminator Audio's first line of entry amplifiers. The I Series models have been designed from the ground up to be a more affordable solution, while still having all of the features that you have come to expect from our IA Series amplifiers, from remotes and strapping to more flexible crossover networks.

Features

• Digital Class-D Linkable Mono Block Amplifier
• MOS-FET Pulse Width Modulation Power Supply
• 1 Ohm Stable Topology / 16 Volt Stable
• Heavy Duty 2 Oz Copper Layer Double Sided Epoxy PCB
• Extremely High Precision Electrical Components For Reliability
• Proprietary Custom Tooled Heatsink
• Black Molded Oversized 4 AWG Power and Ground Inputs
• Advanced Strapping / Linking
• Multi-Layer Bullet Proof Protection Circuit
• Remote Bass
• 1 Year Limited Warranty

Specifications

• Rated Power ( 14.4V at 1% THD )
• RMS Power - 2 Ohm Linked : 1000W
• RMS Power - 1 Ohm Mono : 500W
• RMS Power - 2 Ohm Mono : 375W
• RMS Power - 4 Ohm Mono : 250W
• Low Pass Filter ( 24dB/Oct. ) : 35Hz - 250Hz
• Subsonic Filter ( 24dB/Oct. ) : 10Hz - 50Hz
• Frequency Response ( +/-3dB ) : 15Hz - 250Hz
• Bass Boost ( 45Hz ) : 0 – 9dB
• Input Sensitivity ( Volt +/- 5% ) : 6.0V - 0.2V
• Signal / Noise Ratio : 95dB
• Dampening Factor ( 1 Ohm ) : >200
• Operation Mode : Master/Slave
• Power Efficiency ( 4 Ohm ) : 85%
• Fuse Rating ( 14.4V ) : 50A
• Fuse Rating ( 14.4V Linked ) : 100A
• Power Input Connection : 4 Gauge
• Operation Voltage : 10V - 16.0V
• Speaker Output Connection : 8 Gauge
• Dimensions ( Inches ) : 6.85 W x 2.36 H x 10.24 L
• Dimensions ( Millimeters ) : 174 W x 60 H x 260 L

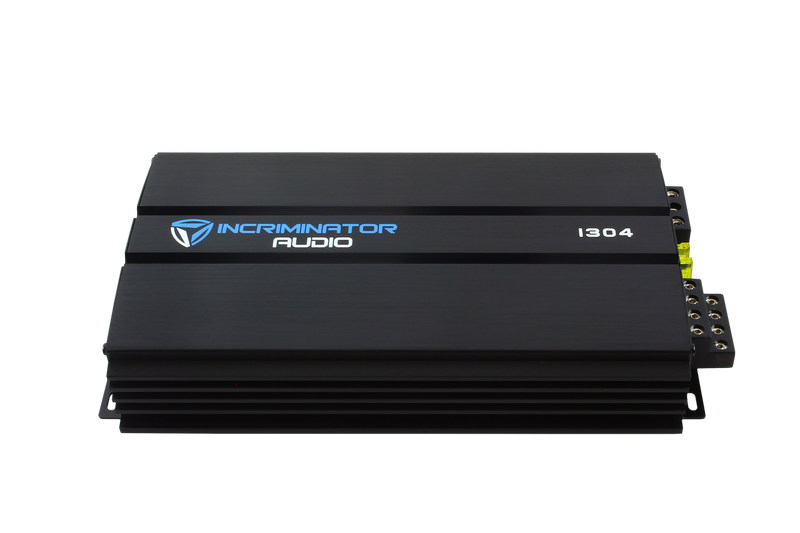

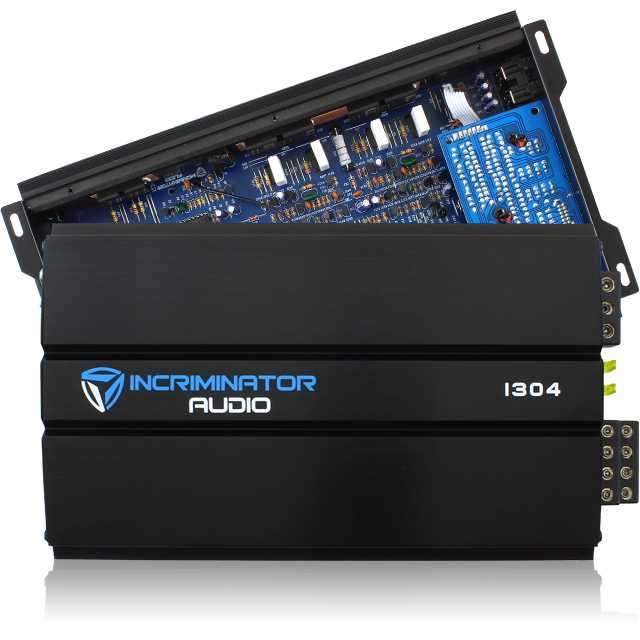

The 2016 I Series amplifiers is Incriminator Audio's first line of entry amplifiers. The I Series models have been designed from the ground up to be a more affordable solution, while still having all of the features that you have come to expect from our IA Series amplifiers, from remotes and strapping to more flexible crossover networks.

Features

• Full Range Class A/B Amplifier
• Dual MOS-FET Pulse Width Modulation Power Supply
• 2 Ohm Stable Stereo / 4 Ohm Mono Topology / 16 Volt Stable
• Extremely High Tolerance Electrical Components For Reliability
• Proprietary Custom Tooled Heatsink
• Black Molded Oversized 4 AWG Power and Ground Inputs
• Multi-Layer Bullet Proof Protection Circuit
• Remote Bass
• 1 Year Limited Warranty

Specifications

• Rated Power ( 14.4V at 1% THD )
• RMS Power - 4 Ohm Mono : 150W x 2CH
• RMS Power - 2 Ohm Stereo : 75W x 4CH
• RMS Power - 4 Ohm Stereo : 50W x 4CH
• Low Pass Filter ( 12dB/Oct. ) : 50Hz - 5000Hz ( X1, X10 )
• High Pass Filter ( 12dB/Oct. ) : 10Hz – 100Hz
• Subsonic Filter ( 12dB/Oct. ) : 10Hz - 500Hz
• Frequency Response ( +/-1dB ) : 20Hz - 20,000Hz
• Channel Separation : 60dB
• Input Sensitivity ( Volt +/- 5% ) : 6.0V - 0.2V
• Signal / Noise Ratio : 95dB
• Dampening Factor ( 4 Ohm ) : 200 +
• Operation Mode : Mirror CH1/2 > CH3/4
• Power Efficiency ( 4 Ohm ) : 65%
• Fuse Rating ( 14.4V ) : 40A
• Power Input Connection : 4 Gauge
• Operation Voltage : 10V - 16.0V
• Speaker Output Connection : 8 Gauge
• Dimensions ( Inches ) : 6.85 W x 2.36 H x 12.20 L
• Dimensions ( Millimeters ) : 174 W x 60 H x 310 L
